Task dossier

AX-CPT Task

T000001T000001-ax-cptSmoke testedWeb preview availableUpdated Jun 19, 2026

A task measuring cognitive control, context processing, and goal maintenance.

Preview path

This task ships with a matched HTML companion so the browser preview can stay aligned to the canonical local repository.

Quick start

Clone locally, then follow the README for install and run instructions.

git clone https://github.com/TaskBeacon/T000001-ax-cpt.git
cd T000001-ax-cpt
# Follow the README for local setup and run steps

README

View on GitHub

AX-CPT Task

Field	Value
Name	AX-CPT Task
Version	main (1.1.0)
URL / Repository	https://github.com/TaskBeacon/T000001-ax-cpt
Short Description	A task measuring cognitive control, context processing, and goal maintenance.
Created By	Zhipeng Cao (zhipeng30@foxmail.com)
Date Updated	2026/02/16
PsyFlow Version	0.1.8
PsychoPy Version	2025.1.1
Modality	Behavior/EEG
Language	Chinese
Voice Name	zh-CN-YunyangNeural

1. Task Overview

This task is an AX-Continuous Performance Test (AX-CPT) designed to assess cognitive control and context processing. Participants are presented with a series of letter pairs (cue followed by probe). They must make a specific target response only when the cue is an 'A' and the probe is an 'X' (AX trials). For all other combinations (AY, BX, BY), a different response (or no response) is required.

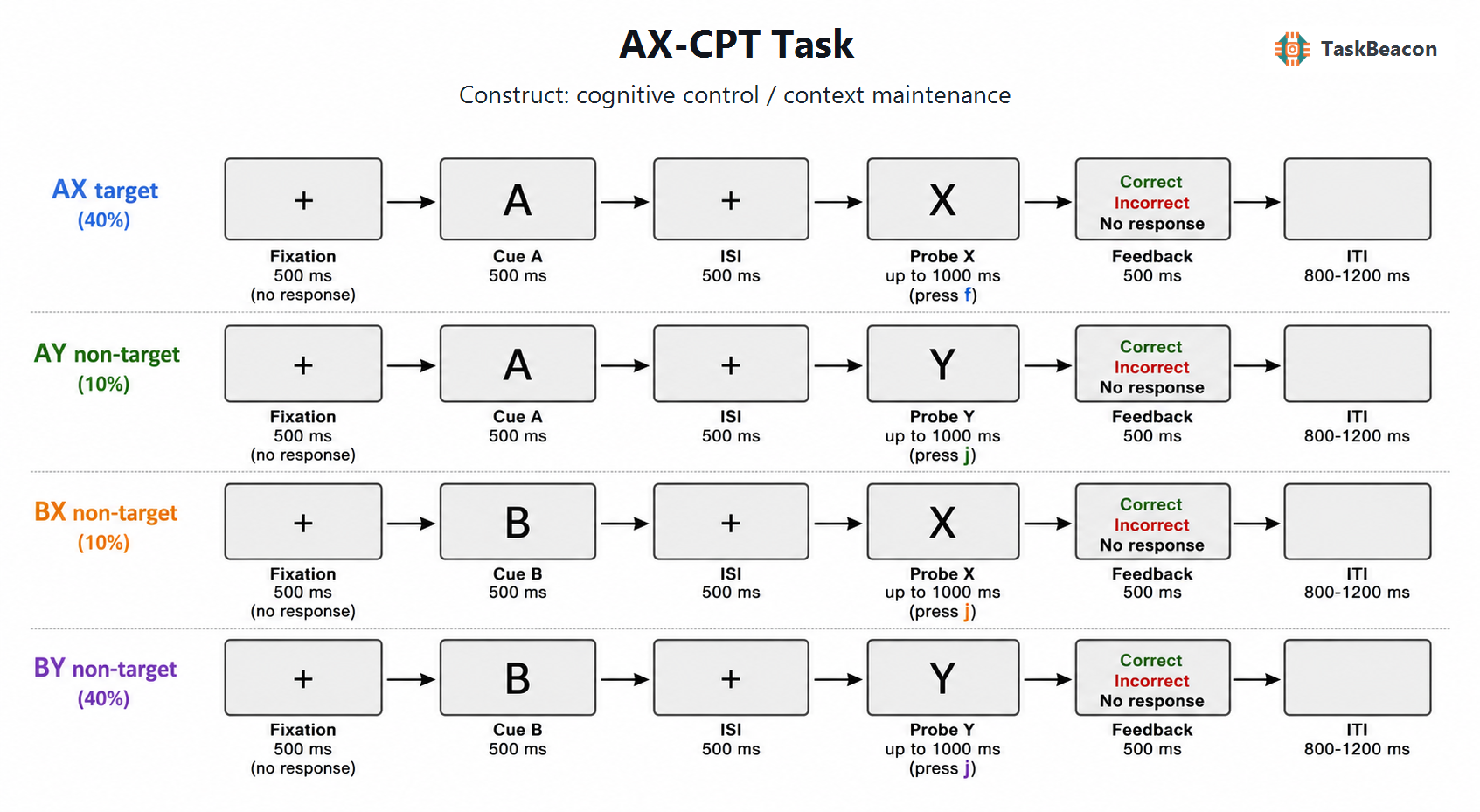

2. Task Flow

Task Flow

Block-Level Flow

Step	Description
1. Instruction	Instructions are displayed at the beginning of the experiment.
2. Trial Execution	Each block runs for a set number of trials, as defined in `config.yaml`.
3. Block Break	After each block, a break screen is shown with the accuracy for the current block.
4. Goodbye	After all blocks are complete, a "goodbye" message is displayed.

Trial-Level Flow

Step	Description
1. Fixation	A central fixation cross `(+)` is displayed.
2. Cue Presentation	The cue letter (A or B) is presented.
3. Inter-Stimulus Interval (ISI) Fixation	A central fixation cross `(+)` is displayed for a short duration.
4. Probe Presentation & Response	The probe letter (X or Y) is presented, and the participant responds.
4. Feedback	Feedback (`Correct`, `Incorrect`, or `Too Slow`) is displayed.
5. Inter-Trial Interval (ITI)	A blank screen is shown before the next trial.

Controller Logic

Component	Description
Condition scheduling	`BlockUnit.generate_conditions()` uses config-defined AX/AY/BX/BY weights.
Response scoring	`src/run_trial.py` derives the target response from cue-probe identity.
Block summary	`main.py` computes probe accuracy for the inter-block feedback screen.

Runtime Context Phases

Phase Label	Meaning
`context_cue`	context cue stage in `src/run_trial.py` responder context.
`delay_fixation`	delay fixation stage in `src/run_trial.py` responder context.
`probe_response`	probe response stage in `src/run_trial.py` responder context.

3. Configuration Summary

a. Subject Info

Field	Meaning
subject_id	Subject Identifier
subname	Subject Name
age	Age
gender	Gender

b. Window Settings

Parameter	Value
size	[1920, 1080]
units	deg
screen	1
bg_color	gray
fullscreen	True
monitor_width_cm	60
monitor_distance_cm	72

c. Stimuli

Name	Type	Description
fixation	text	Central cross `+`.
cue_A	text	The cue letter 'A'.
cue_B	text	The cue letter 'B'.
probe_X	text	The probe letter 'X'.
probe_Y	text	The probe letter 'Y'.
correct_feedback	text	"正确" (Correct) in white.
incorrect_feedback	text	"错误" (Incorrect) in white.
no_response_feedback	text	"未反? (No response) in white.
instruction_text	textbox	Instructions explaining the task.
instruction_text_voice	voice	Voice instructions for the task.
block_break	text	Feedback shown between blocks.
good_bye	text	Final message at the end of the task.

d. Timing

Phase	Duration (s)	Config Variable
fixation	0.5	fixation_duration
cue	0.5	cue_duration
isi	0.5	isi_duration
probe	1.0 (max response time)	probe_duration
feedback	0.5	feedback_duration
iti	random 0.8?.2	iti_duration

e. Triggers

Event	Code
exp_onset	98
exp_end	99
block_onset	100
block_end	101
cue_onset	10
probe_onset	20
AX_trial_onset	30
AY_trial_onset	31
BX_trial_onset	32
BY_trial_onset	33
key_press	40
no_response	41
feedback_correct_response	51
feedback_incorrect_response	52
feedback_no_response	53
feedback_onset	60

4. Methods (for academic publication)

Participants perform an AX-CPT task, a continuous performance paradigm used to measure cognitive control and context processing. Each trial consists of a cue letter (A or B) followed by a probe letter (X or Y). Participants are instructed to press the 'f' key if the cue is 'A' and the probe is 'X' (AX trials). For all other cue-probe combinations (AY, BX, BY), they are instructed to press the 'j' key.

The task begins with a fixation cross, displayed for 500ms. The cue letter is then presented for 500ms, followed by a brief inter-stimulus interval (ISI) fixation of 500ms, and then the probe letter for up to 1000ms or until a response is made. Feedback (correct, incorrect, or no response) is provided for 500ms, followed by a randomized inter-trial interval between 800ms and 1200ms.

The task is structured into 4 blocks of 40 trials each (total 160 trials). Trial types (AX, AY, BX, BY) are presented in a weighted randomized order within each block (AX=40%, AY=10%, BX=10%, BY=40%) to preserve strong context expectancy while retaining critical low-frequency AY/BX control trials. This design allows for the examination of proactive and reactive cognitive control strategies.
