Anti-Reach Task

T000046T000046-anti-reach-taskDraftWeb preview availableUpdated Jun 20, 2026

Generalized pro/anti reach task with eye/hand reference-frame manipulation and keyboard proxy responses.

Preview path

This task ships with a matched HTML companion so the browser preview can stay aligned to the canonical local repository.

Quick start

Clone locally, then follow the README for install and run instructions.

git clone https://github.com/TaskBeacon/T000046-anti-reach-task.git
cd T000046-anti-reach-task
# Follow the README for local setup and run steps

README

View on GitHub

Anti-Reach Task

Field	Value
Name	Anti-Reach Task
Version	v0.1.0-dev
URL / Repository	https://github.com/TaskBeacon/T000046-anti-reach-task
Short Description	Generalized pro/anti reach task with eye/hand reference-frame manipulation and keyboard proxy responses.
Created By	TaskBeacon
Date Updated	2026-04-16
PsyFlow Version	0.1.12
PsychoPy Version	2025.2.4
Modality	Behavior
Language	Chinese
Voice Name	zh-CN-YunyangNeural (voice disabled by default)

1. Task Overview

This task implements a generalized anti-reach paradigm. Each trial combines a color-coded rule cue with a spatial cue, while the participant responds left or right as a portable proxy for reach direction relative to the hand anchor. Pro trials require a same-direction response relative to the spatial cue; anti trials require the opposite direction.

The trial display keeps the eye fixation point and hand anchor visually separated so both reference frames remain legible on a desktop monitor. Standard trials place eye and hand anchors on the same horizontal side; generalized trials place them on opposite sides. The cue and response windows are timed to mirror the published anti-reach protocol, while the local runtime uses deterministic sampling so the full trial sequence can be replayed and audited.

2. Task Flow

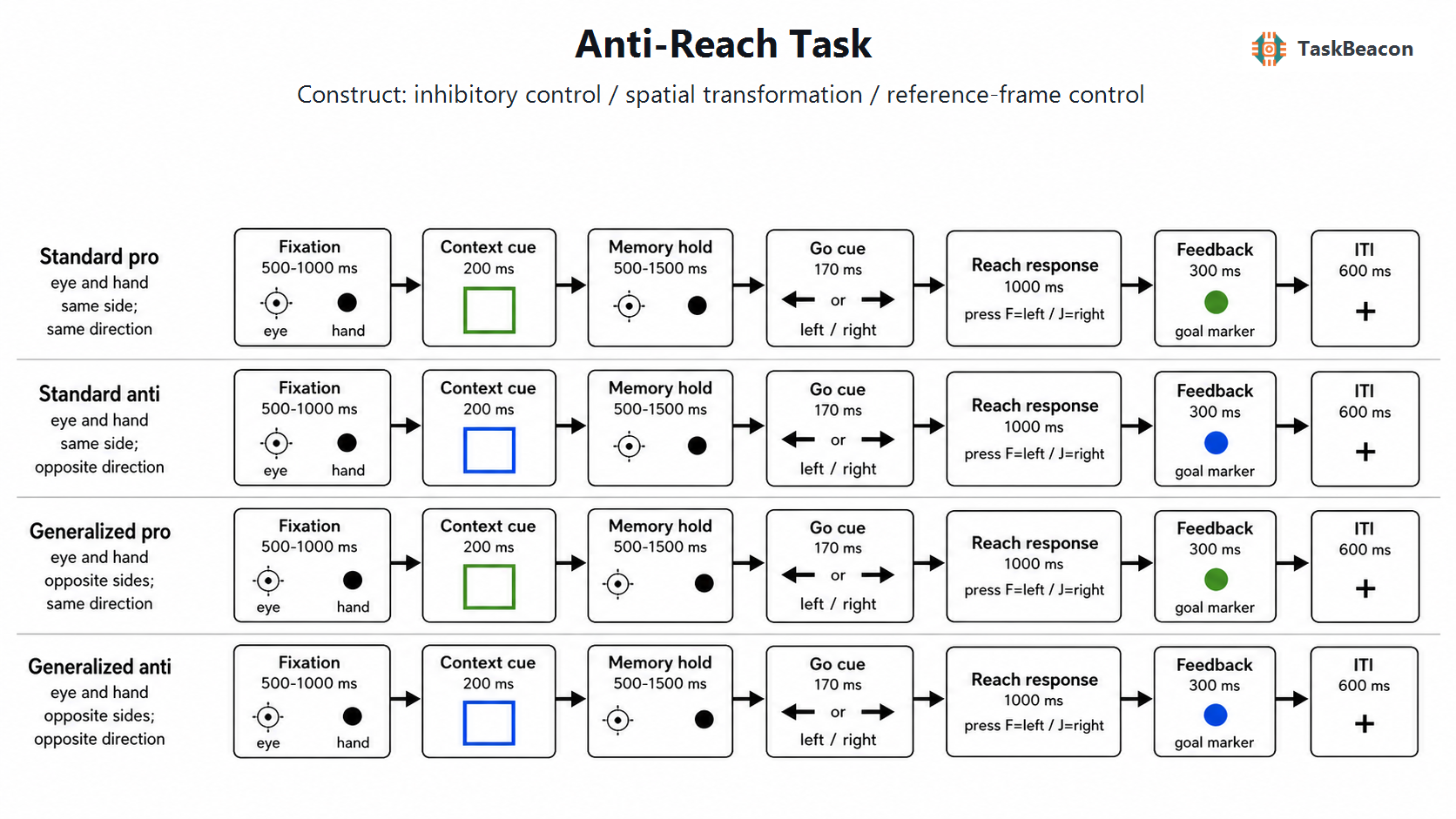

Task Flow

Block-Level Flow

Step	Description
1. Load config	Load the mode-specific YAML config (`config.yaml`, `config_qa.yaml`, or sim config).
2. Collect subject info	Collect participant info in human mode; inject deterministic IDs in QA/sim mode.
3. Initialize runtime	Set triggers, create the PsychoPy window, build the stimulus bank, and preload the config-defined stimuli.
4. Show instructions	Present the Chinese instruction screen and, in human mode, the voice-rendered instruction copy.
5. Run blocks	Call `BlockUnit.generate_conditions()` to schedule the 16 anti-reach condition tokens across the block.
6. Show block break	Present block accuracy, correct-response RT, and timeout counts after each block except the last.
7. Save data	Write trial-level CSV output and the runtime settings JSON.
8. Finalize	Emit the end trigger, close the trigger runtime, and quit PsychoPy.

Trial-Level Flow

Step	Description
`fixation`	Show the eye fixation spot and the hand anchor in the trial-specific left/right positions.
`context_cue`	Show a green pro frame or blue anti frame around the eye fixation spot.
`memory_hold`	Remove the context frame and hold fixation before the go signal.
`go_cue`	Flash the white spatial cue at the eye-centered cue location.
`reach_response`	Keep the cue visible while capturing the left/right reach-direction proxy response.
`feedback`	Show the correct goal marker and a brief Chinese outcome label.
`iti`	Show a neutral fixation cross before the next trial.

Controller Logic

Feature	Description
Condition Scheduling	Uses the built-in `BlockUnit.generate_conditions(...)` path instead of a custom scheduler.
Determinism	Trial tokens are parsed into positions, cue sides, and correct keys with a seeded helper in `src/utils.py`.
Balance	The 16 trial tokens are evenly sampled within each block.

Other Logic

Component	Description
Trial-spec builder	`build_antireach_trial_spec(...)` derives eye/hand positions, cue location, goal location, and deterministic durations from the block seed and trial id.
Summary helpers	`summarizeBlock(...)` and `summarizeOverall(...)` compute accuracy, mean RT, timeout count, and total trials from the reduced rows.
Sampler responder	`responders/task_sampler.py` emits plausible QA/sim responses using the correct key from runtime factors.

3. Configuration Summary

Settings are loaded from config/config.yaml in human mode and from the QA/sim variants in automated modes.

a. Subject Info

Field	Meaning
`subject_id`	3-digit participant identifier.

b. Window Settings

Parameter	Value
`size`	`[1024, 768]`
`units`	`pix`
`screen`	`0`
`bg_color`	`black`
`fullscreen`	`false`
`monitor_width_cm`	`35.5`
`monitor_distance_cm`	`60`

c. Stimuli

Core task parameters and visible stimuli are listed below.

Core Task Parameters

Parameter	Value
`conditions`	16 tokens spanning standard/generalized x pro/anti x cue left/right
`total_blocks`	Human `4`; QA/sim `1`
`trial_per_block`	Human `32`; QA/sim `16`
`overall_seed`	`2026`
`position_step_px`	`145`
`eye_row_y_px`	`120`
`hand_row_y_px`	`-120`
`cue_row_y_px`	`120`
`goal_row_y_px`	`-120`

Visible Stimuli

Stimulus ID	Type	Description
`instruction_text`	text	Chinese instruction block describing the red eye fixation spot, white hand anchor, green pro frame, blue anti frame, and F/J response mapping.
`fixation_cross`	text	Neutral white cross used during the ITI.
`eye_fixation`	circle	Red fixation spot in the eye row.
`hand_anchor`	circle	White hand anchor in the hand row.
`context_frame`	rect	Square rule frame rebuilt as green for pro and blue for anti.
`spatial_cue`	circle	White spatial cue at the eye-centered cue location.
`goal_marker`	circle	Colored endpoint marker used on the feedback screen.
`feedback_text`	text	Brief Chinese outcome label shown above the goal marker.
`block_break`	text	Block summary with accuracy, mean RT, and timeout count.
`good_bye`	text	End-of-task summary screen.

d. Timing

Phase	Duration
fixation	`0.5-1.0 s`
context cue	`0.2 s`
memory hold	`0.5-1.5 s`
go cue	`0.17 s`
response window	`1.0 s`
feedback	`0.3 s`
ITI	`0.6 s`

e. Triggers

Event	Code
`exp_onset`	1
`exp_end`	2
`block_onset`	10
`block_end`	11
`fixation_onset`	20
`context_cue_onset`	21
`memory_hold_onset`	22
`go_cue_onset`	23
`response_window_onset`	24
`feedback_hit_onset`	40
`feedback_miss_onset`	41
`response_left`	50
`response_right`	51
`response_timeout`	60
`iti_onset`	70

f. Adaptive Controller

Parameter	Value
Controller	None
Block scheduling	Built-in `BlockUnit.generate_conditions(...)`
Simulation policy	`TaskSamplerResponder` for sampler sim; built-in scripted responder for smoke sim

4. Methods (for academic publication)

Participants completed a generalized anti-reach task implemented in PsychoPy/PsyFlow. Each trial began with a fixation display showing an eye fixation spot and a hand anchor on separate rows. A colored square frame then indicated whether the participant should respond in the same direction as the spatial cue (pro) or the opposite direction (anti). After a memory delay, a brief white spatial cue appeared and the participant made a left/right keyboard response that served as a portable proxy for reach direction relative to the hand anchor.

The design preserves the published reference-frame logic by manipulating both cue side and eye/hand arrangement. Standard trials keep the eye and hand anchors on the same horizontal side, whereas generalized trials place them on opposite sides. This allows the runtime to audit compatibility in eye-centered and hand-centered frames while keeping the participant interface simple enough for desktop execution.

All participant-facing text lives in the YAML configs, while the state machine, stimulus placement, and trial timing are handled in code. Trial-specific positions and durations are derived deterministically from the block seed and trial id, which makes the task reproducible across human, QA, and simulation modes. This structure supports both experimental use and traceable validation of the anti-reach logic.
